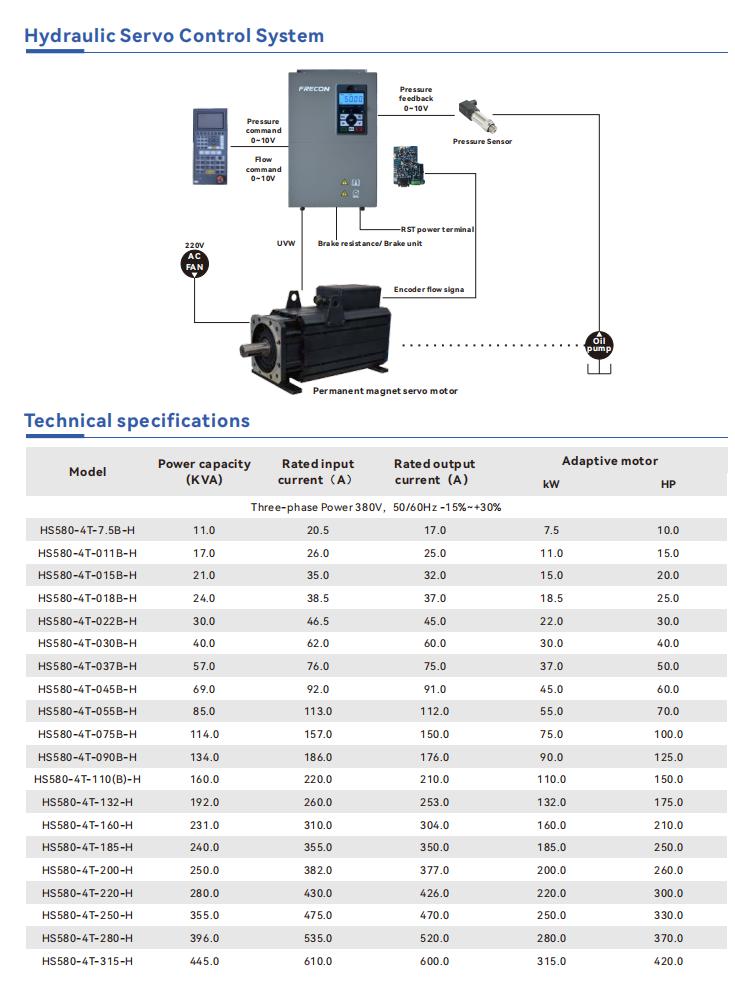

The hydraulic servo system is equipped with a high-performance hydraulic servo driver, and is equipped with a rotary encoder and a pressure sensor to provide feedback on flow and pressure respectively. The high performance synchronous servo motor makes corresponding flow and pressure adjustments by changing the speed and torque, and performs precise closed-loop control of pressure and flow, thereby achieving the best match and automatic adjustment of the servo motor to the energy requirements of the injection molding machine.
Get a Quote Data DownloadFeatures
Support 4 pumps parallel control
Up to 110kW built-in brake unit and install easily
With multiple protection functions such as overcurrent, over voltage, short circuit, etc
The pressure rise speed is fast, regulation accuracy is high, and small over-pressure and overcharge range
Pressure and low rate are closed-loop control, with high precision and fast response speed
Multiple communication functions (standard built-in CAN, RS485, optional EtherCAT, Proǁ bus)
