Feed Machinery Solutions

Date:2021-07-30 09:38:56Author:孚瑞肯电气Click:1169

Guide:Although Chinasfeed industry has only a short period of more than 20 years, the feed industry system has been formed and feed processing technology is an important part of feed production, which is a strong pillar to ensure the healthy and stable development of feed industry. With the increase of market demand, it is necessary to raise production output.

1、 Process flow of feed processing


Figure 2.1


2、The constituent part of feed processing



3、Control principle

(1)Control process

1) The feeding part is controlled by an upper computer, and the upper computer regulates the conveying speed of the belt so as to control the size of the feeding amount.

2) The belt conveying adopts frequency converter to speed upand it adopts external analog speed or communication given speed regulation.

3) The function of the powder machine is to break the raw material for second times, inverter speed control and external analog speed control, it must be consistent with the front end speed.

4) The thorn granule machine is a mixture of broken raw material, additive, water and other raw materials, which is dried and made into fodder.

5) The packing machinery weigh and package the synthesized feed.

 2Control principle diagram

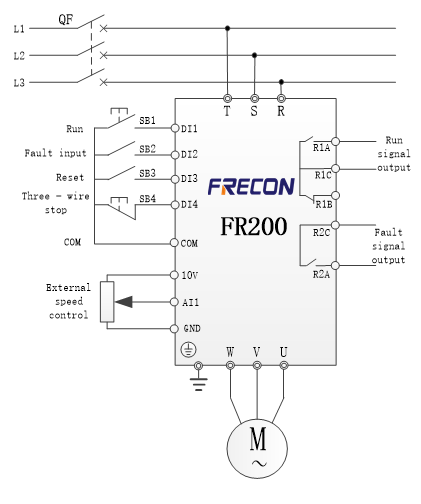

The part of the transformation is the powder machinery, the following is the reform and control schematic diagram of the powder mechanical frequency converter.

1) Adopts external analog quantity Ai speed regulation, and take the front end converter analog output;

2) Use three wire control mode, external enable and stop;

3) External fault output, it is more effective for protection.

4) Operation indication, it indicates that the converter is running.

5) Fault output indication, it can receive warning announcement like the indicator lamp, buzzer and so on .




 Figure 4.1

4. The main parameter settings

Param

Parameter Name

Setting Range

Explain

F01.O1

Master Frequency

Command Source

2

AI1 speed governing

F02.O0

Run command

1

Terminal control

F02.O2

Reverse-proof action

1

Reverse disabled

F04.00

Function of terminal DI1

1

Running forward

F04.01

Function of terminal DI2

9

External fault input

F04.02

Function of terminal DI3

7

Fault reset

F04.03

Function of terminal DI4

3

Three-wire control

F04.15

FWD/REV terminal

control mode

2

Three-wire mode

F05.02

Relay 1 output function

1

Drive is running

F05.03

Relay 2 output function

2

Fault output



5Controlling advantages of FRECON frequency inverter.

1Energy saving The power saving rate can reach 15%-25%;

2It can reduce reactive power, increase power factor, and reduce pollution of power grid;

3Wide range of speed regulation: Generally up to 20:1, and in the entire speed range, with high efficiency of  adjustable-speed. Therefore, frequency and speed regulation applies to wide speed range, and often work in running situation with low load .

4It can improve the technological level and product quality, and prolong the service life of the motor.
