In the context of modern industrial and residential settings, motor drive systems contribute to energy conservation and process automation. They are particularly significant in industrial electronics, where they manage the high-torque demands for acceleration, and in renewable energy systems, such as wind turbines, where they ensure efficient power generation.
In electrical engineering, the choice between Variable Frequency Control (VFC) and Vector Control (VC) is pivotal, shaping the performance and efficiency of electric motors. As industries strive for precision and optimization, understanding the nuances between these two control methodologies becomes paramount.
In this comprehensive exploration, we delve deep into the mechanisms, applications, and comparative advantages of Variable Frequency Control and Vector Control, shedding light on their distinctive features and guiding engineers toward informed decision-making in their pursuit of superior motor control solutions.
The 3-Phase AC Induction Motor
Three-phase AC motors use electromagnetic induction for currents in the rotor from the stator windings' rotating magnetic field (RMF). Due to their relative motion, the RMF, formed by AC in each three-phase winding spatially displaced by 120 degrees, produces a current in the rotor. The magnetic field and induced currents provide torque while turning the rotor. Slip, necessary for torque generation in induction motors, occurs when the rotor speed lags behind the RMF.
Furthermore, an inverter with variable frequency control helps regulate AC induction motor speed. The inverter modifies the stator RMF and rotor speeds while transforming the AC power frequency. Conveyor belts, HVAC systems, and electric vehicle drives need this type of accurate motor speed management. In addition, inverters optimize energy consumption and system efficiency by matching motor speed to load. It limits energy waste and extends motor life.
Variable frequency control (V/F control), including induction motors, controls AC motor speed with an identical voltage-to-frequency (V/F) ratio.
V/F control smooths acceleration, deceleration, and speed control under different load circumstances while adjusting motor voltage frequency. It is helpful in situations that need a broad speed control range but not accurate torque control since it focuses on speed stability rather than the motor's magnetic field vector position.
On the other hand, vector control, also called field-oriented control (FOC), actively controls AC motor speed and torque by altering the current vector magnitude and angle concerning the magnetic field. Vector control decouples the motor's torque and magnetic flux components for separate control, similar to DC motors. As a result, it provides dynamic performance.
Differences between Variable Frequency Control and Vector Control
Vector control and variable frequency control differ in how they handle electric currents and magnetic fields in motor operations.
In variable frequency control, tuning the power supply frequency to amend motor speed keeps a proportionate voltage-to-frequency relationship to prevent magnetic core saturation. For applications needing precise torque or position control, its straightforwardness renders it less efficient at managing transient reactions and torque output.
However, vector control precisely correlates motor current amplitude and phase with magnetic field vectors for better torque and speed control. This technology employs complex algorithms and feedback systems, including encoders or sensors, to correctly track and alter motor performance. Vector control manages transient and steady-state situations for higher-level applications.
Applications of Variable Frequency Control and Vector Control
HVAC systems, pumps, and other industrial equipment utilize variable frequency control for speed control but not torque control. Its uncomplicatedness and cost-effectiveness appeal to manufacturers and engineers shadowing efficiency in modest applications.
Vector control drive is used in robots, electric vehicle drivetrains, and CNC machines for high accuracy and rapid reaction. Vector control may also be used in wind turbines and solar inverters. That's where efficiency and control under changing circumstances are key. Vector control's flexibility and greater control dynamics allow it to operate well in low-speed and high-torque circumstances. Hence, it has become important in current industrial and technological uses.
Aspect | Variable Frequency Control | Vector Control |
Control Method | Adjusts the frequency of input voltage to control motor speed | Controls both frequency and amplitude of input voltage to control motor speed and torque |
Motor Compatibility | Compatible with induction and synchronous motors | Used with induction motors, but can also be applied to synchronous motors |
Speed Regulation | Moderate speed regulation capabilities | Excellent speed regulation capabilities |
Torque Control | Limited torque control capabilities | Precise torque control capabilities |
Dynamic Response | Moderate dynamic response | Excellent dynamic response |
Efficiency | Efficiency can vary based on load and operating conditions | Higher efficiency than variable frequency control |
Complexity | Relatively simpler control scheme | More complex control algorithm and hardware implementation |
Cost | Lower cost than vector control | Higher cost due to additional hardware and complexity |
Applications | Simple speed control applications with moderate performance requirements | Applications requiring precise speed and torque control |
Sensor Requirement | It may or may not require position or speed feedback | Requires position or speed feedback for precise control |
Conclusion

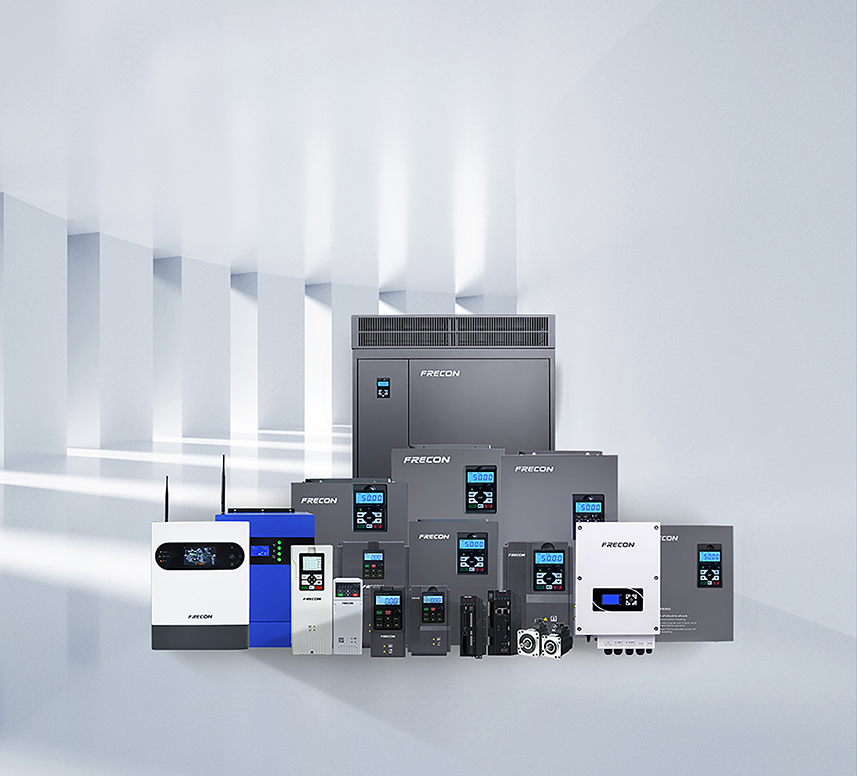

Residing among the top VFD manufacturers, we at FRECON offer motor drive systems, including variable frequency control and vector control, from 0.2 kW to 1 MW for precise applications in petroleum, steel, and textiles.
Plus, over 40 patents in energy-efficient drives and integrated control systems highlight our creativity. Our products also fulfill the EU's CE Directive and ISO 9001:2015 quality requirements. Last but not least, our presence in over 70 countries and regions ensures timely response to product delivery and professional maintenance.
