1. Introduction
Industrial washing machine from the ordinary to the development of automatic type, the automatic industrial washing machine mostly adopts multiple double speed AC motor, because of the characteristics of simple structure, stable, cheap, widely used. But its shortcoming is the speed adjustment performance is bad, the speed catastrophe is big, the vibration is big. With the development of power semiconductor technology, AC inverter has been widely used in industrial washing machines in recent years.
2. Process requirements
According to the industrial washing machine load low speed high torque starting and external control interface, FRECON FR200X series inverter can well satisfy the requirements of high torque, multi speed, wide voltage range, high temperature and convenient means of communication, the successful implementation of the low speed high-speed washing, drying and other processes, through practice, to achieve a very good use effect.
The washing process for this type of industrial washing machine is as follows:

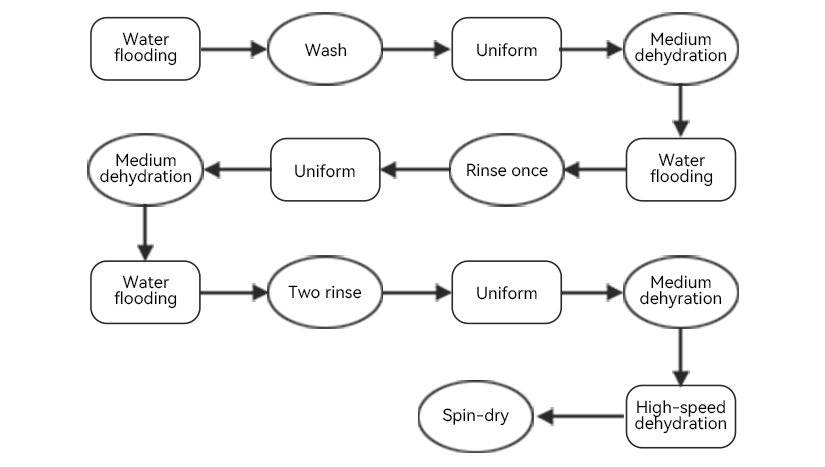

Figure 2-1
3.Control scheme

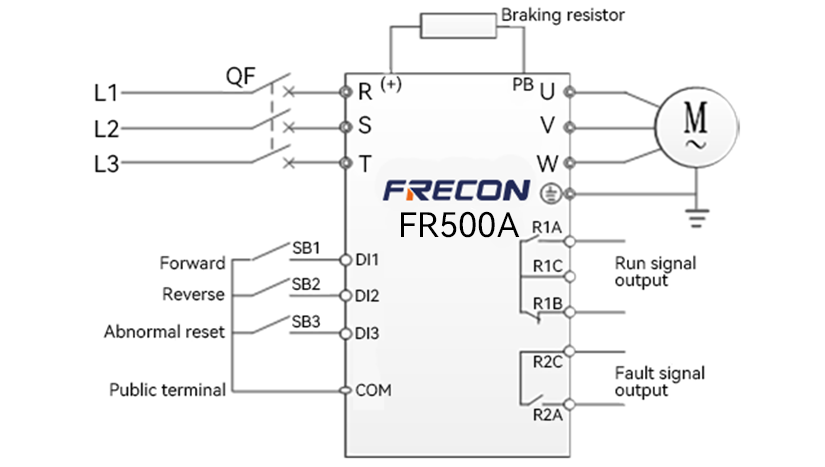

Figure 3-1
The industrial washing machine itself has built-in dedicated control computer for control. The running speed of each process stage set directly in the inverter, taking into account the washing requirements of different washing time, simple PLC built-in dedicated control computer running time of each process stage by the industrial washing machine is controlled by inverter to complete or.
Process parameter table at each stage of washing machine that realized by inverter control:
4.Main parameter settings of inverter
5.Field application pictures
