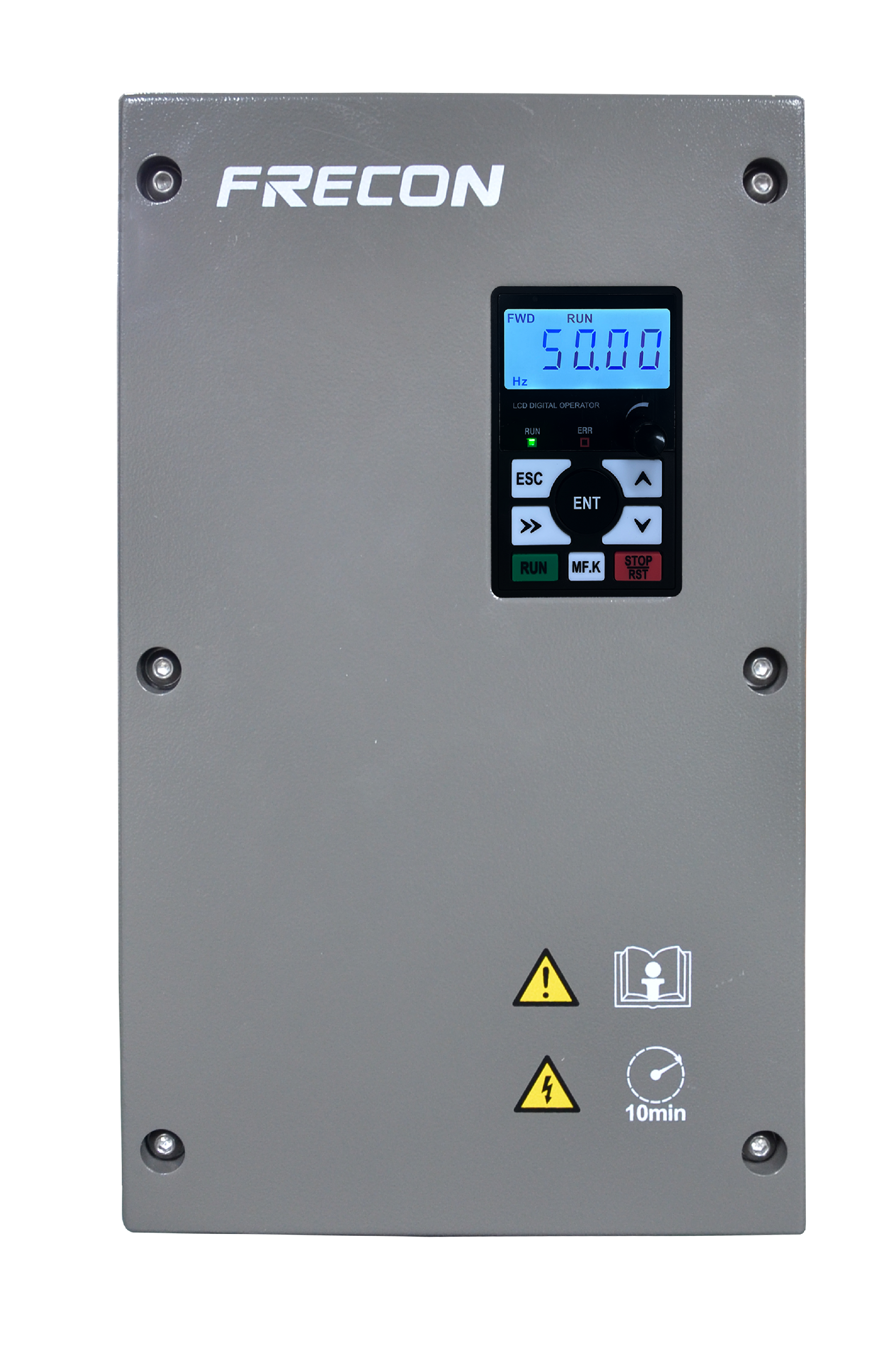

PV380 series solar pump inverter

Larger water yield under same condition

Applicable to AM, PMSM, etc.

Advanced MPPT algorithms, efficiency reaches 99%

Support solar power DC/Power grid

ACinput, and DC/ACauto switch

Operating temperature range: - 10 ~ 60 ℃

IP65 design, outdoor installation

All models support 4G/WIFI module for real-time remotemonitoring and operation in APP & WEB. (optional)

Inverter will entry dormancy mode and wake up automaticallyaccording to sunshine intensity

Support over-current, over-voltage, phase loss, short circuit,over-temperature protection etc.

Built-in anti-reverse diode to prevent current from AC/DC busto PV modules, improving system safety and reliability
