Mining equipment places unusual demands on motor drives. Conveyors, crushers, pumps, fans, and material-handling systems often operate under high loads while available installation space remains limited. For equipment builders and mining operators, selecting a drive therefore requires more than comparing rated power.
We need to consider power density, motor-control accuracy, thermal management, protection, and installation flexibility. Ahigh power density inverter can help us fit capable motor control into tighter equipment layouts without sacrificing the functions required for demanding industrial applications.
Why High Power Density Matters in Mining Equipment
Space is often a valuable engineering constraint in mining machinery. Equipment may need to accommodate motors, gearboxes, electrical components, cooling systems, and mechanical structures within a restricted enclosure or skid. Increasing the size of an electrical cabinet is not always practical, particularly when machinery must remain compact for transportation, installation, or retrofit applications.
Power density addresses this challenge by delivering substantial power capability within a relatively compact inverter design. For equipment manufacturers, this can provide greater flexibility when arranging electrical components. It may also help us reduce the space allocated to the drive itself, leaving more room for other critical systems.
What Mining Applications Demand from an Inverter
Mining environments involves dust, vibration, temperature variations, and demanding motor loads. Variable frequency drives are used across applications such as conveyors, pumps, crushers, grinding systems, and ventilation equipment. Danfoss notes that mining and mineral-processing drives must handle demanding loads and harsh conditions while supporting reliable motor control.
Motor-control performance is particularly important when equipment needs controlled acceleration, precise speed regulation, or stable torque. A high performance inverter should therefore provide control capabilities that match the application's mechanical requirements rather than simply supplying variable frequency power.
High Performance Inverter Control for Precise Operation
Mining machinery does not always operate at one fixed speed. Conveyors may need controlled acceleration, pumps may require variable flow, and other driven equipment can operate under changing loads. Precise control helps us match motor operation with the process requirement.

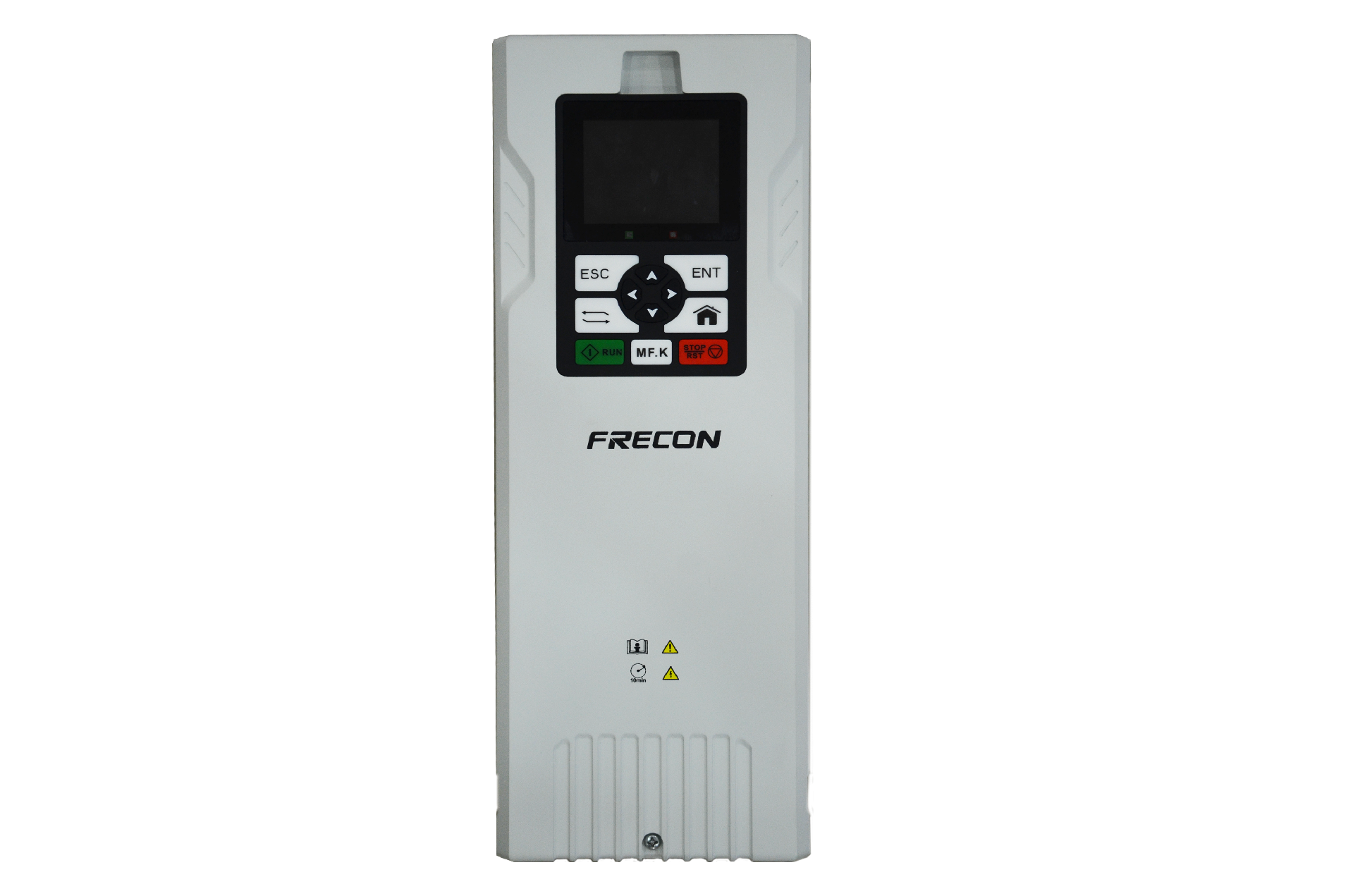

The FRECON FR30 Series is designed as a high performance inverter with built-in VC, SVC, and VF control modes. Its product documentation identifies applications requiring high speed-control accuracy, fast torque response, and strong low-frequency output characteristics.
This flexibility allows system designers to select a suitable control approach according to the motor and application. The FR30 documentation also specifies speed-control precision of up to ±0.1% under close-loop vector control and torque response below 10 ms under sensorless vector control.
Managing Heavy Loads in Compact Designs
Mining equipment can impose substantial starting and operating loads on motors. An inverter must therefore provide sufficient control capability during acceleration and changing load conditions. Otherwise, inadequate motor control can affect equipment performance and place unnecessary stress on the mechanical system.
The FR30 Series supports heavy-duty operation with an overload capability of 150% of rated current for 60 seconds, according to its published technical specifications. It also provides torque-boost functions and multiple acceleration and deceleration modes.
For equipment manufacturers, these capabilities can be useful when configuring drives for applications where motors must start or accelerate under demanding conditions. Correct drive sizing remains essential, because overload capability should not be treated as a substitute for proper system engineering.
Protection Is Essential in Harsh Industrial Environments
Compact equipment cannot ignore environmental protection simply because installation space is restricted. Dust and other contaminants can contribute to electrical, mechanical, or thermal problems in variable frequency drives. Danfoss recommends suitable enclosure protection for drives operating in dusty environments.
We therefore consider enclosure and installation conditions when selecting a drive for mining equipment. FRECON's FR30 Series offers diversified IP-level designs, while its documentation lists IP20/IP54 configurations. The appropriate configuration depends on the installation environment and should be selected according to the actual protection requirements of the equipment.
Cooling and Installation Flexibility
Thermal management becomes especially important when power electronics are installed within compact equipment. A smaller installation area can make heat dissipation more challenging if the system is not designed correctly. Cooling arrangements, airflow, cabinet design, ambient temperature, and installation clearance should therefore be evaluated together.
The FR30 Series uses an independent air-duct design, which is one of its listed product features. It also supports wall-mounted or flange mounting, providing equipment designers with more than one installation approach.
These options can help us integrate the drive into different machine layouts while maintaining attention to thermal and service requirements. Compactness should always be balanced with sufficient ventilation and accessibility.
Why We Choose the FRECON FR30 Series
We developed the FR30 Series for industrial applications that require a combination of high performance, flexible control, and high power density. The series is positioned as a full-featured inverter for the mid-to-high-end market, with a power range of 0.75–110 kW on FRECON's current product overview.
Beyond its control modes, the FR30 includes a built-in brake unit, safety motion stop function, common DC bus support, multiple communication expansion options, adaptive PID functionality, and fault protection. These features can support different equipment architectures without requiring a separate solution for every application.
Making Better Use of Limited Equipment Space
For mining equipment manufacturers and industrial system integrators, inverter selection is ultimately a balance between physical constraints and performance requirements. A drive needs to fit the available space while providing suitable motor control, overload capability, protection, cooling, and communication functions.
We see the FRECON FR30 Series as a practical option when equipment designers need a high power density inverter without giving up advanced control capabilities. Its VC, SVC, and VF control modes, high-speed torque response, flexible mounting, independent air duct, and diversified IP-level design provide useful options for demanding industrial applications.
A compact inverter alone does not determine the success of mining equipment. We need to match the drive to the motor, load profile, environment, and installation structure. By evaluating these factors together, we can use a high performance inverter to achieve effective motor control while making more efficient use of valuable equipment space.
