Motor-driven equipment rarely operates under identical load conditions throughout a production cycle. Pumps, fans, conveyors, compressors, mixers, and other industrial machines can demand very different torque characteristics. Understanding the distinction between constant-torque and variable-torque VFDs helps engineers select drives that match the mechanical load, improve operational efficiency, and avoid unnecessary oversizing.
For us at FRECON, this distinction is especially important when developing drive and solar pump inverter solutions for industrial automation and sustainable energy applications.
What Defines Constant-Torque and Variable-Torque Loads?
The key difference is how the application's torque requirement changes with speed. Constant-torque applications generally require approximately the same torque as operating speed changes. Typical examples include conveyors, mixers, and certain positive-displacement equipment where the mechanical load does not decrease substantially as speed falls.
Variable-torque loads behave differently. Their torque requirement generally decreases as speed decreases and increases as speed rises. Centrifugal fans and pumps are classic examples. ABB identifies pumps and fans as variable-torque applications while listing conveyors and mixers among equipment that can involve constant-torque loads.
This distinction affects how the motor and drive should be selected. Engineers should consider the actual load profile rather than assuming that every motor connected to a VFD requires the same control strategy.
How Constant-Torque VFDs Handle Demanding Loads
Constant-torque applications can place significant demands on a motor even when operating at reduced speed. A conveyor carrying material, for example, may continue to require substantial torque when its speed changes. Starting the conveyor can also create a temporary demand above normal running conditions.
For these applications, the selected VFD should provide appropriate overload capability and motor-control performance. Vector control can be useful where precise speed or torque behavior is required. Depending on the machine, engineers may also evaluate braking, acceleration and deceleration settings, low-speed torque, and feedback requirements.
We recommend sizing the drive according to the motor's rated characteristics and the application's actual operating profile. Simply choosing a VFD based on nominal motor horsepower can overlook starting conditions, overload requirements, environmental conditions, and mechanical characteristics.
Why Variable-Torque VFDs Suit Pumps and Fans
Variable-torque applications are particularly important in energy-management projects because pump and fan loads can change significantly with speed. Reducing motor speed can substantially reduce the power required by many centrifugal systems, making variable-speed control an effective method of matching energy consumption to process demand.
For this reason, variable-torque VFD inverters are commonly associated with pumps and fans. ABB's general-purpose drives, for example, are designed to control both variable- and constant-torque applications, including pumps, fans, conveyors, and mixers.
For solar pumping, the control challenge extends beyond conventional AC power. A solar pump inverter must coordinate motor operation with changing photovoltaic power availability. MPPT technology can help extract available power from the PV array while the drive regulates the connected pump.
Choosing Between the Two Drive Categories
The first consideration is the actual function of the driven equipment. If the load requires relatively consistent torque throughout its speed range, a constant-torque drive configuration may be appropriate. Conveyors, mixers, and similar machinery commonly fall into this category.
If the load is a centrifugal pump or fan whose torque and power requirements vary with speed, a variable-torque configuration may provide a better match. The choice should also account for the required speed range, motor type, acceleration requirements, overload conditions, ambient environment, and control method.
Engineers should also distinguish between the drive's application classification and its physical capability. Some modern VFDs can support both constant- and variable-torque applications through appropriate parameter settings and sizing. ABB's ACS580, for example, is positioned for both categories rather than being limited to one load type.
FRECON's Approach to Industrial Drive Applications

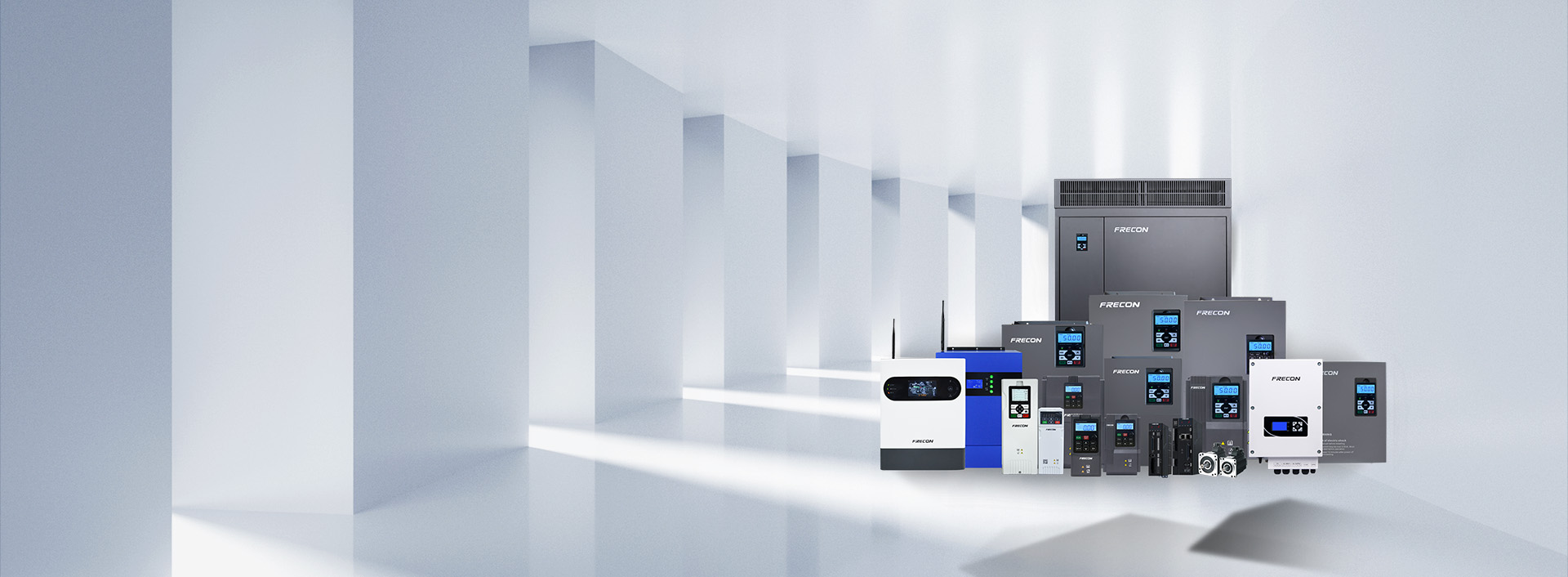

At FRECON, we provide solutions across industrial automation, energy management, and sustainable energy. We have more than a decade of experience developing and applying energy converters, with our portfolio including VFD inverters, servo drives, and solar inverter systems. Our official product portfolio includes general-purpose inverter series alongside dedicated solar pump inverter products.
Our PV600 Series Solar Pump Inverter illustrates how a drive can be tailored to variable-speed pumping. The series supports asynchronous and permanent-magnet synchronous motors, uses advanced MPPT algorithms with efficiency reaching 99%, and supports both DC solar power and AC grid power input. It can also operate without a battery and automatically enter dormancy or wake up according to sunshine intensity.
These functions are particularly relevant when the objective is to operate pumps according to available solar energy while maintaining practical water output. The PV600 also incorporates over-current, over-voltage, phase-loss, short-circuit, and over-temperature protection.
Selecting VFD Inverters for the Application
The most suitable VFD inverters are not necessarily the most powerful models. Oversizing can increase acquisition costs and may complicate system optimization, while undersizing can create overload and reliability problems.
We recommend that business engineering teams document the motor's rated power, voltage, current, speed, load type, starting conditions, required operating range, and environmental conditions before selecting a drive. For pump applications, hydraulic requirements and expected solar conditions should also be evaluated.
Control requirements matter as well. A simple fan may require less sophisticated control than a conveyor demanding precise speed regulation. Similarly, a solar pumping installation requires functions that conventional industrial drives may not provide, such as MPPT and PV/grid coordination.
Matching Drive Technology to the Load
The distinction between constant-torque and variable-torque applications ultimately comes down to the relationship between speed and mechanical demand. Constant-torque equipment generally requires stronger torque capability across its operating range, while variable-torque equipment such as centrifugal pumps and fans can benefit from speed-based energy savings.
We approach VFDs from this application perspective. Rather than selecting a drive only by power rating, we consider the machine, load profile, control requirements, energy source, and operating environment together. With our experience in energy converters and industrial automation, FRECON can provide drive technologies for different application requirements, including dedicated solar pump inverter solutions where variable-torque pumping and renewable energy operation intersect.
