With the ongoing transition of industrial production toward precision and energy efficiency, two-stage vacuum pumps, leveraging their advantages of high pumping speed and superior ultimate vacuum, are extensively employed in applications requiring stringent vacuum conditions, such as electronic manufacturing, chemical distillation, and semiconductor processing. Traditional two-stage vacuum pumps operated by fixed-frequency control face issues such as significant start-stop shocks, elevated energy consumption, and insufficient precision in vacuum regulation, rendering them unsuitable for the dynamic operating demands of modern industry. FR500 series vector control inverter from FRECON, featuring high performance and high power density in their design, offers an optimal solution for the variable-frequency retrofitting of two-stage vacuum pumps, enabling enterprises to achieve precise pressure control and substantial energy savings.

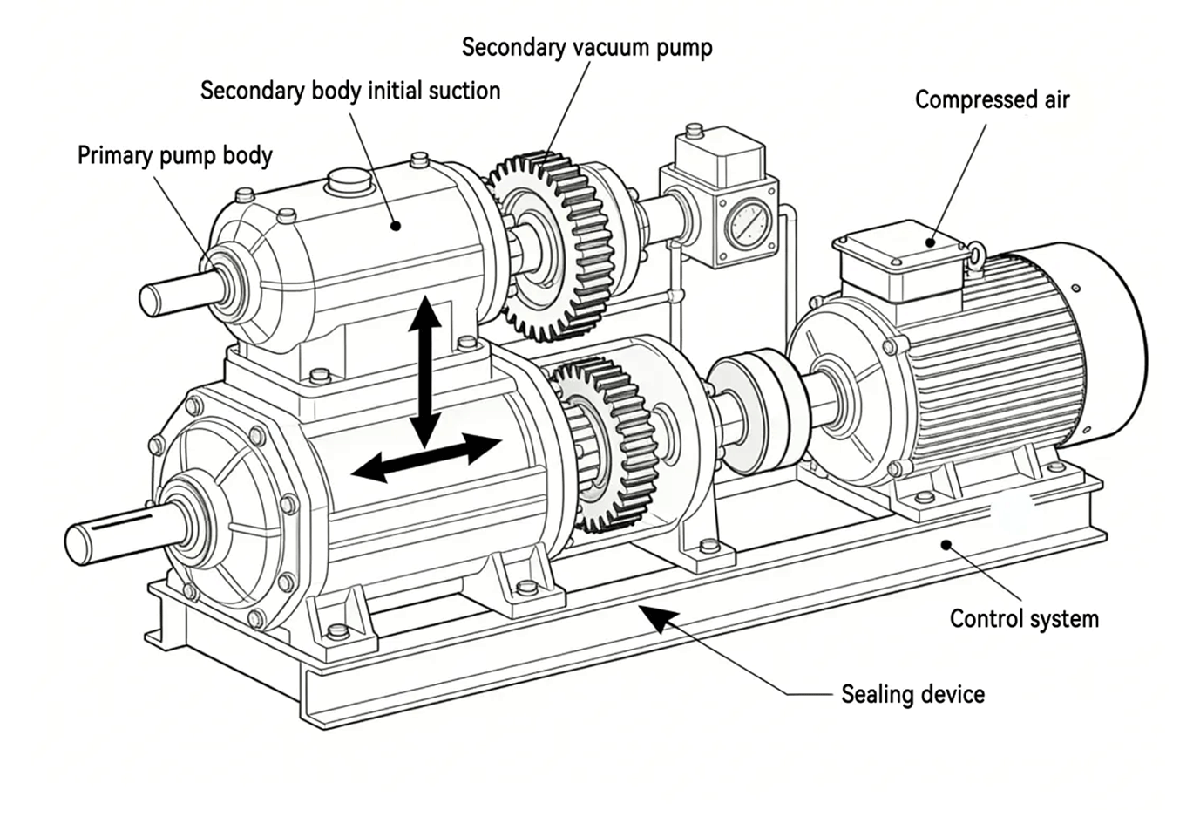

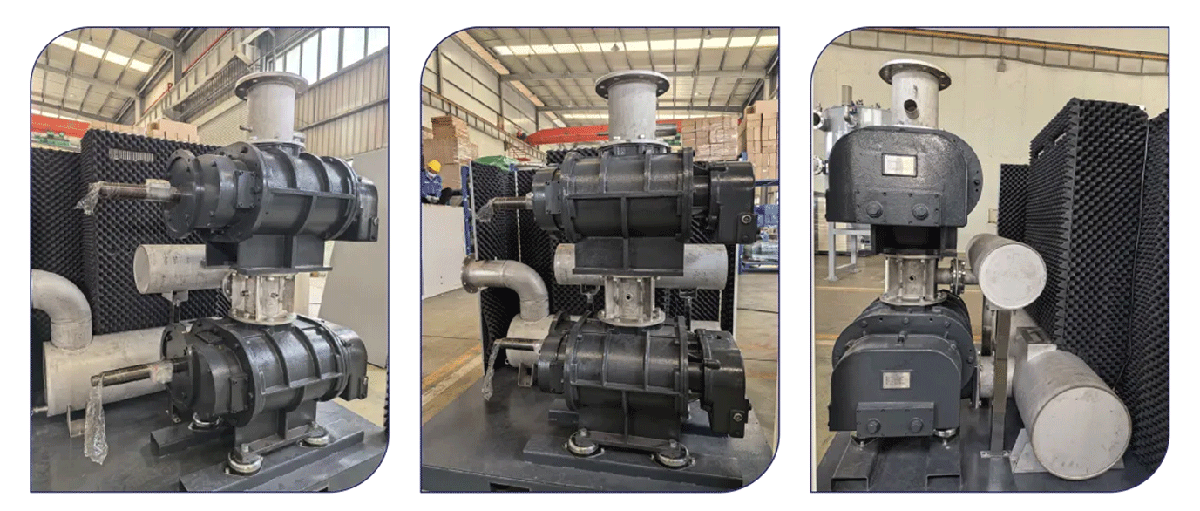

The core assembly of the two-stage vacuum pump consists of a primary pump body, a secondary pump body, transmission gears, an electric motor, sealing mechanisms, and a control system. The primary pump body is responsible for initial evacuation to establish a fundamental vacuum environment, while the secondary pump body further compresses gases to enhance the vacuum level. The electric motor serves as the power core, and the FR500 inverter ensures precise rotational speed regulation. All components work in coordination to achieve efficient and stable vacuum extraction operations.

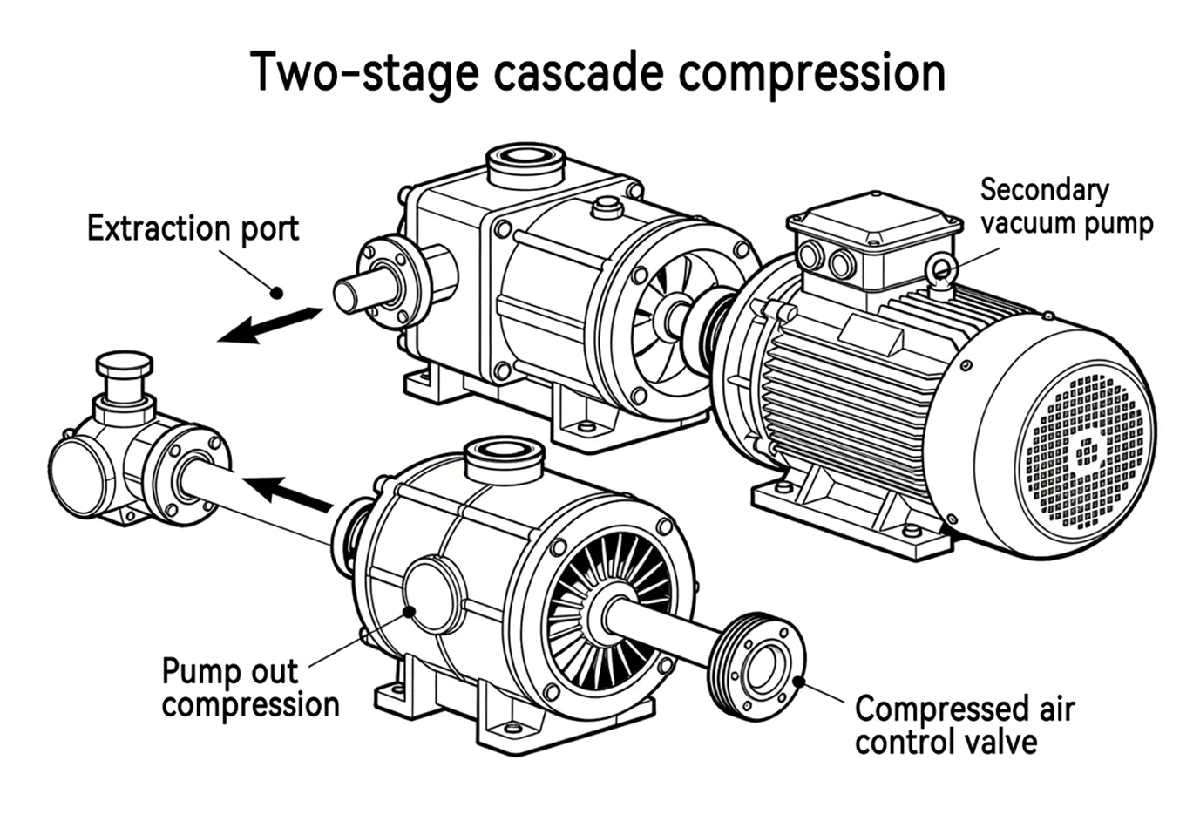

Two-stage vacuum pumps operate based on the "two-stage series compression" principle. Upon activation, the motor drives the impeller of the first-stage pump to rotate, drawing in gas from the vacuum environment and performing preliminary compression. The compressed gas then enters the second-stage pump, where it undergoes further compression before being discharged. This progressive two-stage compression mechanism enables the delivery of high vacuum levels. The vacuum degree and pumping speed can be precisely regulated by adjusting the motor speed, as there is a linear correlation between speed and vacuum level, allowing adaptation to varying operational requirements.

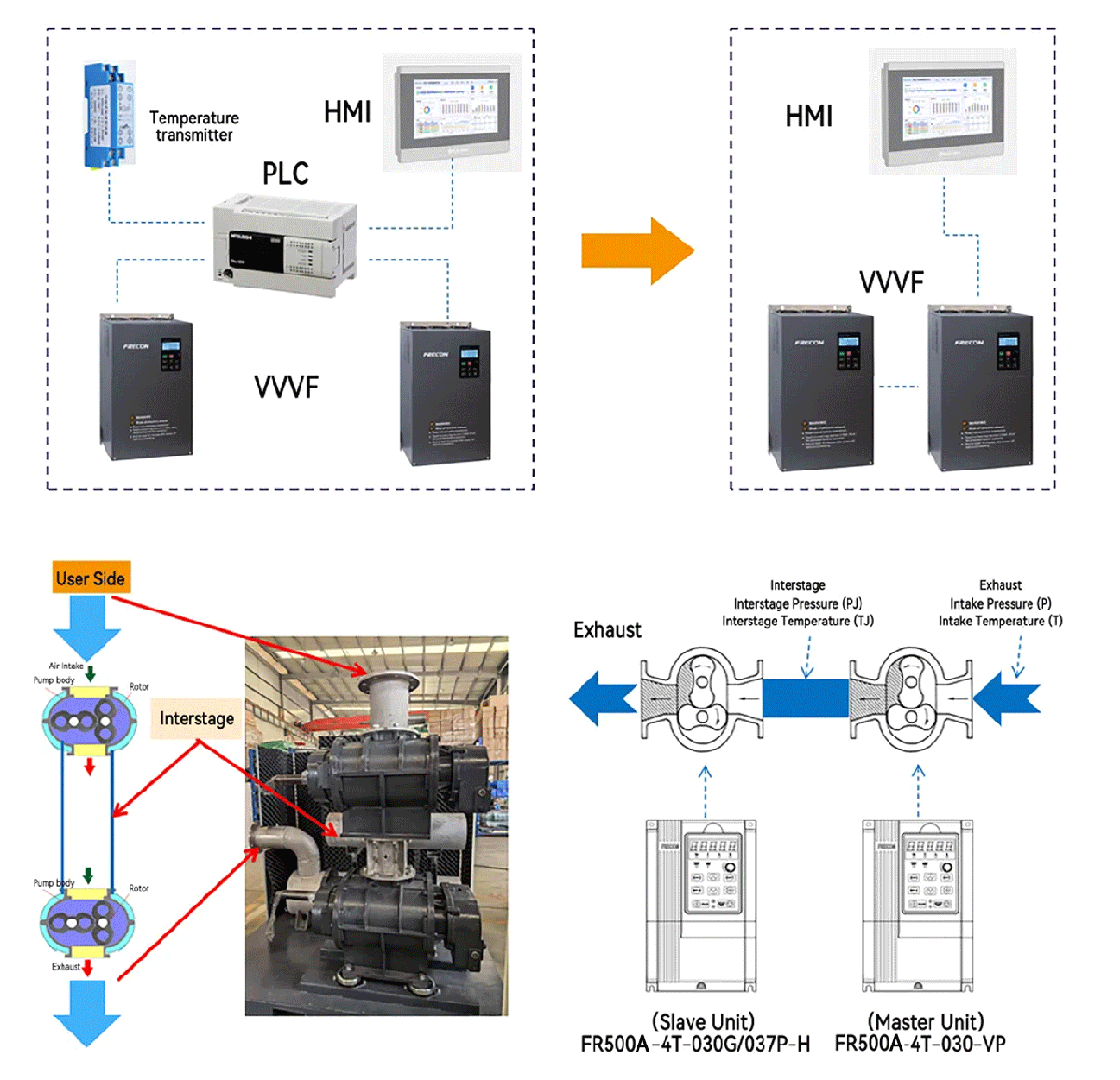

In response to the high-load characteristics and precise pressure control requirements of the two-stage vacuum pump, the user has carried out system renovation with the FR500 inverter from FRECON. The core circuit design is as follows: (Note: This can be replaced with an actual wiring diagram. The core circuit includes: three-phase 380V power supply → circuit breaker → FR500 inverter → motor → vacuum sensor → PLC / control system → FR500 feedback interface)
Leveraging the dual-stage vacuum pump characteristics, FR500 retrofit employs sensorless vector control to achieve a starting torque of 0.5 Hz/150%, effectively mitigating high-load startup impacts. Through high-precision speed regulation combined with an adaptive PID algorithm, vacuum level control is maintained within ±0.1 kPa. With an independent air duct design and triple-proof (dust-proof, moisture-proof, corrosion-proof) construction, the system is well-adapted to demanding environments, ensuring 24-hour continuous operation. Multi-communication interfaces enable integrated system coordination, while multi-level protection mechanisms enhance operational safety. Wide input voltage compatibility and the inclusion of a DC reactor contribute to reduced grid power losses.
After retrofitting, flawless adaptability has been achieved: the inrush current at startup has been reduced to no more than 1.5 times the rated value, with vacuum stability consistently meeting the stringent requirements of high-precision scenarios. The overall energy consumption has been reduced by 20%-30%, critical failure frequency has been cut by 60%, and maintenance costs have been substantially minimized.
FRECON FR500A inverter excels with its core advantages of high starting torque, high-precision PID control, and robust environmental adaptability, making it a precise match for the technical requirements of two-stage vacuum pump systems. It effectively addresses common operational challenges such as high inrush currents during starting and stopping, unstable vacuum levels, and excessive energy consumption associated with conventional control methods. This makes the FR500 particularly well-suited for demanding applications requiring stable vacuum environments—including electronics,chemical processing,and semiconductor manufacturing—thereby facilitating efficient,energy-saving,and reliable production operations. Its performance has garnered widespread recognition across various industries.
