The single-stage vacuum pump, renowned for its structural simplicity, convenient operation and maintenance, and controllable cost, is extensively utilized in industrial applications requiring moderate vacuum levels, such as food packaging, pharmaceutical drying, and building material processing. However, conventional single-stage vacuum pumps with line-frequency control often encounter challenges including limited speed regulation, high no-load energy consumption, and significant mechanical stress during shutdown, making it difficult to meet the energy-saving demands and flexible production requirements of modern enterprises. The FR500A series vector control inverter from FRECON , with its flexible adaptability and reliable performance, presents an ideal solution for upgrading single-stage vacuum pumps, enabling enterprises to reduce operational costs and enhance production efficiency.

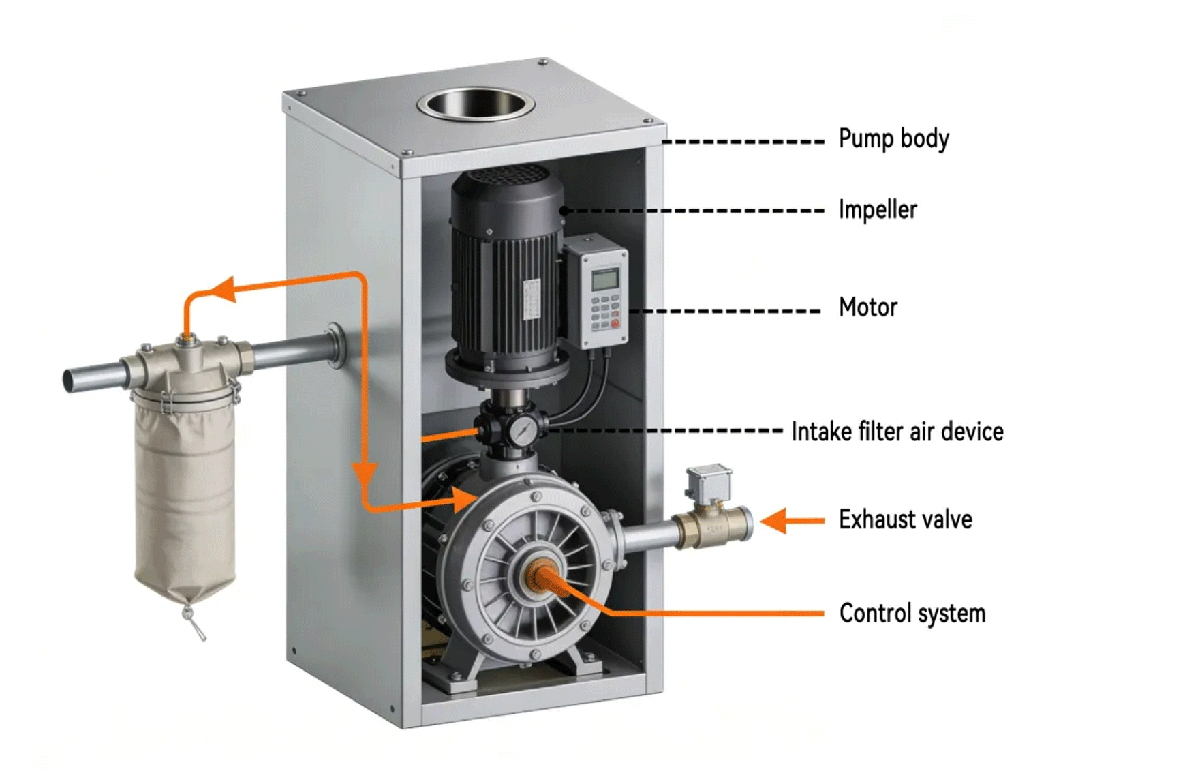

The core components of a single-stage vacuum pump include the pump body, impeller, motor, intake air filter, exhaust valve and control system. The pump body serves as the core for gas compression. The rotation of the impeller achieves gas suction and compression. The motor provides power output. The FR500A inverter is responsible for precise speed control. The intake air filter ensures the cleanliness of the gas. The coordinated operation of all components enables stable vacuum extraction.

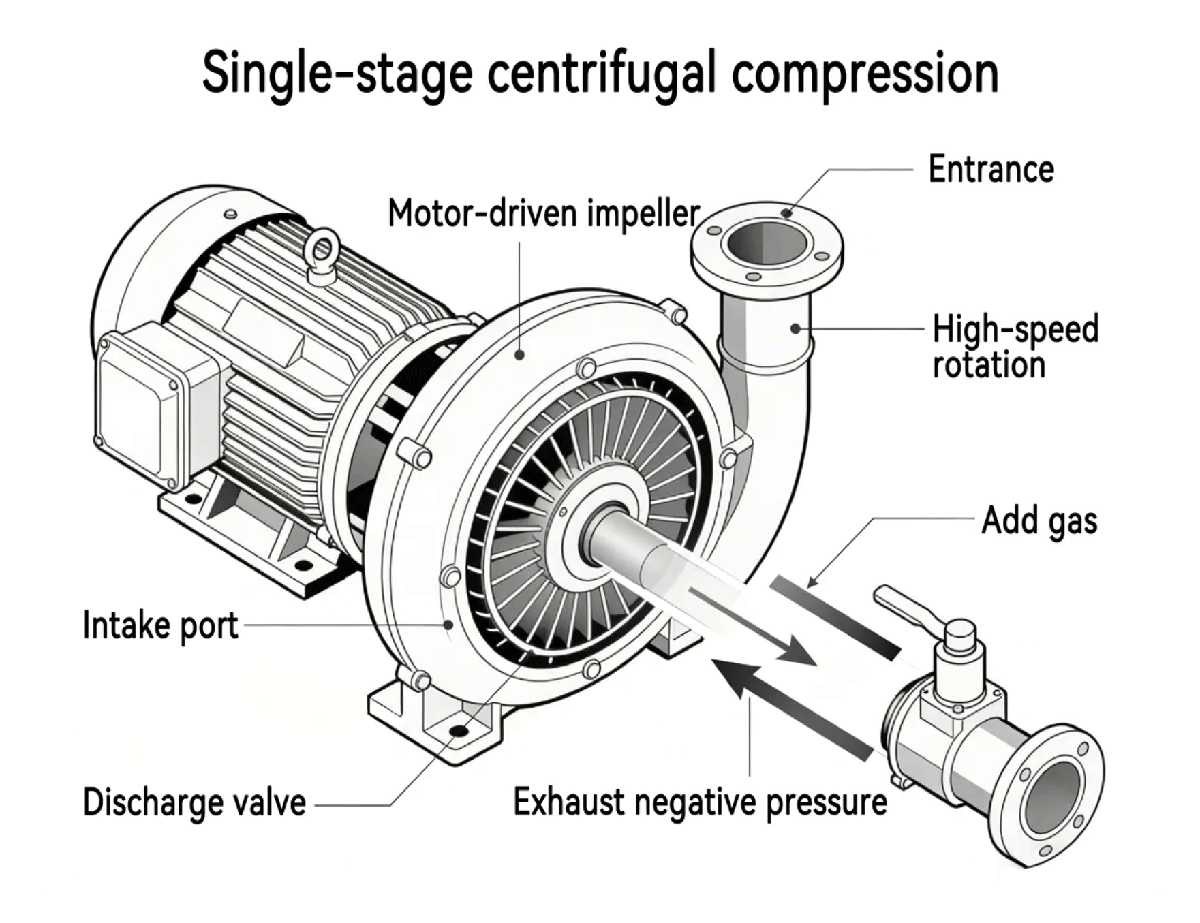

A single-stage vacuum pump operates on the principle of "single-stage centrifugal compression." When driven by an electric motor at high speed, the impeller creates a negative pressure inside the pump housing, drawing gas from the vacuum environment through the intake port. The gas is then compressed by centrifugal force exerted by the impeller, and after its pressure increases, it is discharged through the exhaust valve, thereby establishing a stable vacuum. By adjusting the motor speed, the pump enables stepless regulation of both pumping speed and vacuum degree, accommodating various operational requirements—such as low vacuum for food packaging and medium-to-high vacuum for pharmaceutical drying processes.

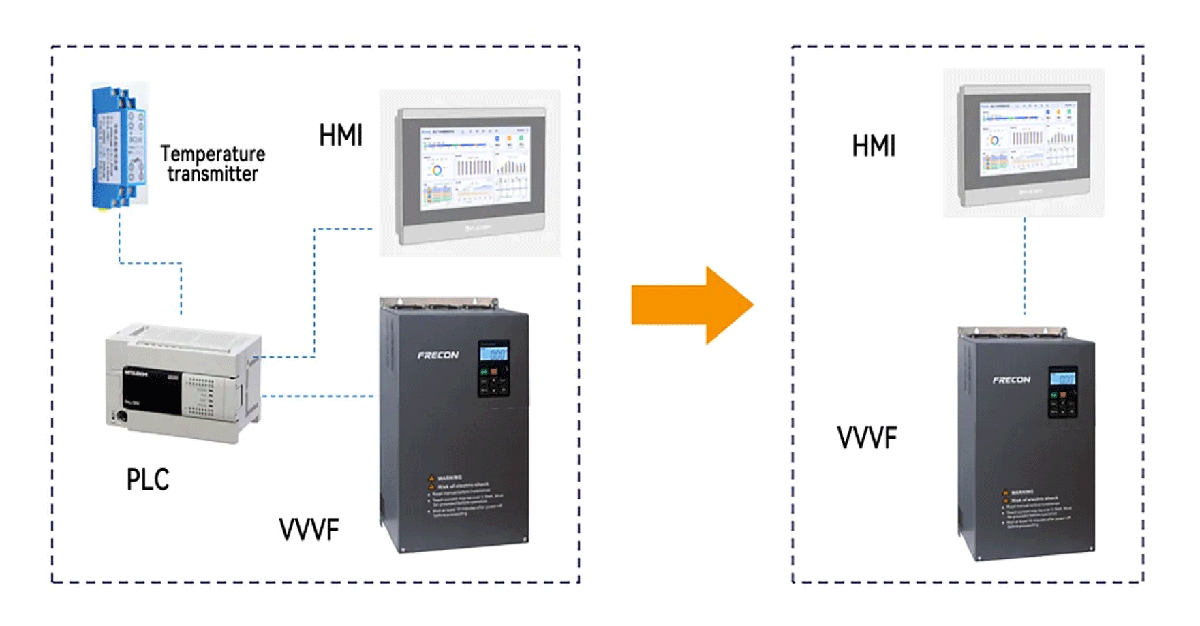

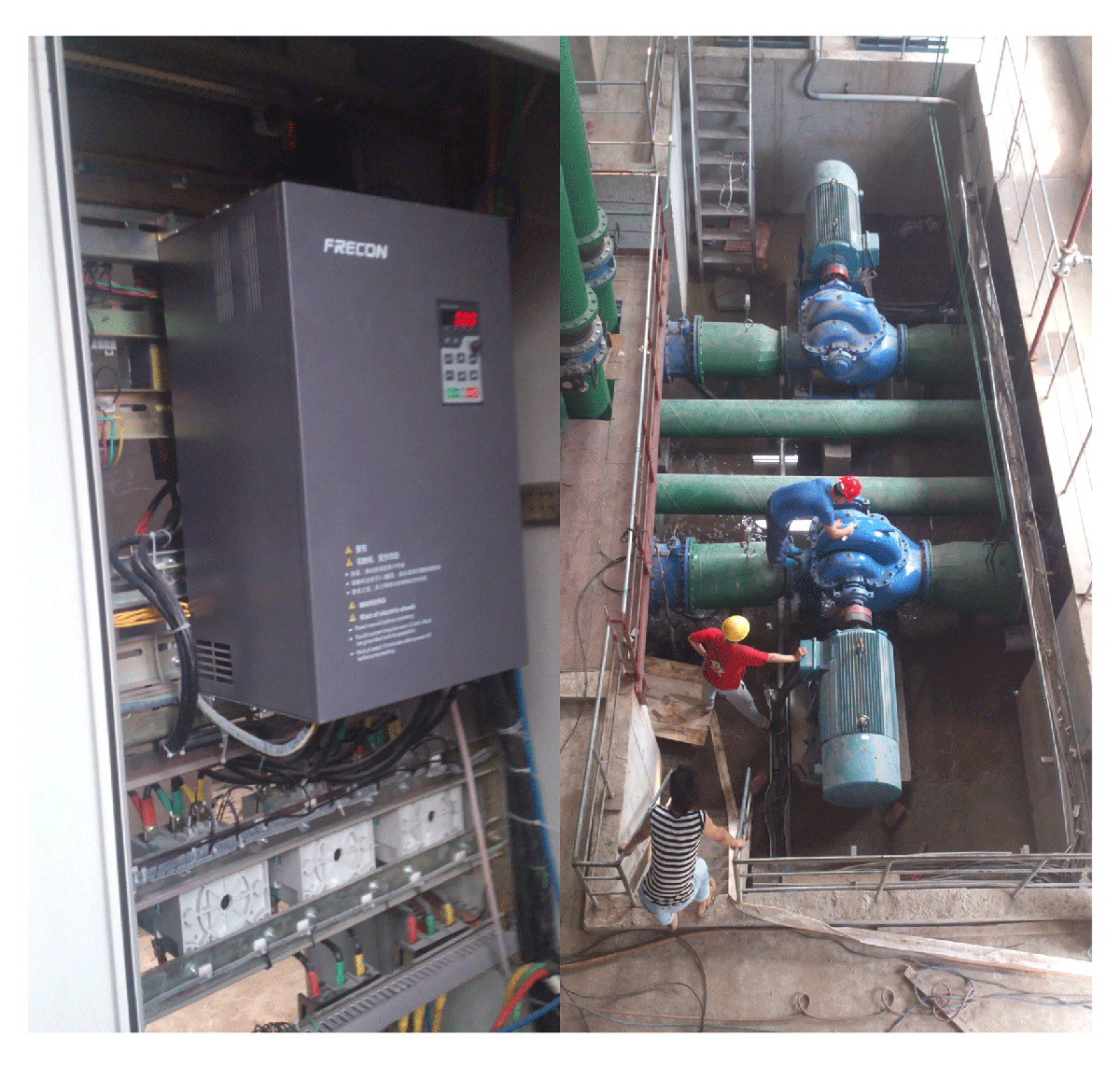

For the light-to-medium load characteristics and flexible speed regulation requirements of single-stage vacuum pumps, the user has implemented FRECON FR500A variable inverter for system retrofitting. The core circuit design is as follows: (Note: Can be replaced with an actual wiring diagram. The core circuit includes: Three-phase 380V power supply → Circuit breaker → FR500A VFD → Single-stage vacuum pump motor → Pressure sensor → Local control cabinet → FR500A I/O interfaces.)
Based on the characteristics of single-stage vacuum pumps, the FR500A retrofit solution incorporates the following enhancements:
- Utilizes speed tracking to achieve smooth, impact-free start/stop operations, thereby extending equipment service life.
- Employs oscillation suppression functionality to mitigate low-speed jitter.
- Simplifies wiring through multi-function terminals and reduces no-load energy consumption via a sleep/wake function.
- Ensures operational safety during load fluctuations and emergency stops using a new IGBT platform and braking circuit.
- Facilitates streamlined commissioning with dedicated application macros and background software.
Following the optimization upgrade, the FR500A demonstrates high compatibility with single-stage vacuum pumps, delivering superior operational efficiency. The system ensures smoother startup with minimized grid fluctuations and achieves vacuum precision within ±0.2 kPa. Energy consumption is substantially reduced, with a 40%+ decrease under no-load conditions and a comprehensive energy saving of 18%–25%. Noise levels are lowered by 5–8 dB, while maintenance frequency is reduced by 50%, significantly cutting operational costs and resource consumption.
FR500A variable inverter from FRECON demonstrates precise compatibility with single-stage vacuum pump applications, owing to its core advantages of smooth start-stop control, accurate speed regulation, and high operational reliability. It effectively addresses the shortcomings of conventional control methods, such as excessive energy consumption, inconvenient adjustment, and poor stability. With versatile configuration and outstanding energy-saving performance, it proves to be an optimal upgrade solution for single-stage vacuum pumps across various sectors including food packaging and pharmaceutical drying, garnering widespread recognition from enterprises.
